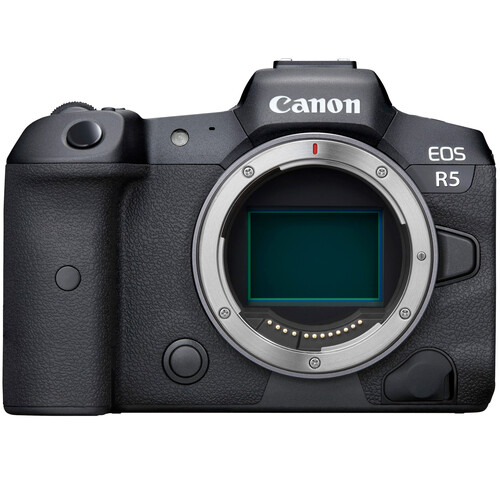

Canon EOS R5 Mirrorless Camera

Add to wishlist
Compare
  • 45MP Full-Frame CMOS Sensor
  • DIGIC X Image Processor
  • 8K30 Raw and 4K120 10-Bit Internal Video
  • 400MP In-Camera Files with No Software
  • Sensor-Shift 5-Axis Image Stabilization
  • 12 fps Mech. Shutter, 20 fps E. Shutter
  • Dual Pixel CMOS AF II with 1053 Points
  • 3.2″ Vari-Angle Touchscreen LCD
  • Subject Tracking with Deep Learning
  • CFexpress & SD UHS-II Memory Card Slots

Canon R5 Specs

Key Specs
Lens Mount
Canon RF
Sensor Resolution
Actual: 47.1 Megapixel
Effective: 45 Megapixel (8192 x 5464)
Image Sensor
36 x 24 mm (Full-Frame) CMOS
Image Stabilization
Sensor-Shift, 5-Axis
ISO Sensitivity Range
100 to 51,200 (Extended: 50 to 102,400)
Video
100 to 25,600 (Extended: 51,200)
Continuous Shooting
Mechanical Shutter
Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)
Electronic Shutter
Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG)
Internal Recording Modes
H.265 4:2:2 10-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [680 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [680 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/59.94/100/120 fps [170 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [170 to 1880 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [28 to 230 Mb/s]
H.264 4:2:0 8-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [470 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [470 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps [120 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [120 to 1880 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [12 to 180 Mb/s]
Raw 12-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [2600 Mb/s]
External Recording Modes
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) up to 59.94 fps
UHD 4K (3840 x 2160) up to 59.94 fps
Media/Memory Card Slot
Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]
Video I/O
1x Micro-HDMI (Unspecified Signal) Output
Audio I/O
1x 1/8″ / 3.5 mm TRS Stereo Microphone Input on Camera Body
1x 1/8″ / 3.5 mm TRS Stereo Headphone Output on Camera Body
Power I/O
1x USB-C (5VDC at 1.5 A) Input
Other I/O
1x USB-C (USB 3.2 / 3.1 Gen 2) Data Output (Shared with Power Input)
1x Canon N3 Control Input
Wireless
2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Control
Display Type
Free-Angle Tilting Touchscreen LCD
Battery Type
1x LP-E6NH Rechargeable Lithium-Ion
Imaging
Lens Mount
Canon RF
Sensor Resolution
Actual: 47.1 Megapixel
Effective: 45 Megapixel (8192 x 5464)
Image Sensor
36 x 24 mm (Full-Frame) CMOS
Sensor Crop (35mm Equivalent)
Crop Factor: 1x
Additional Modes: 1.6x
*Additional Crop Occurs in Select Video Modes
Image Stabilization
Sensor-Shift, 5-Axis
Built-In ND Filter
No
Capture Type
Stills & Video
Exposure Control
Shutter Type
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
Shutter Speed
Mechanical Shutter
1/8000 to 30 Seconds
Electronic Front Curtain Shutter
1/8000 to 30 Seconds
Electronic Shutter
1/8000 to 1/2 Second
Bulb/Time Mode
Bulb Mode
ISO Sensitivity Range
100 to 51,200 (Extended: 50 to 102,400)
Video
100 to 25,600 (Extended: 51,200)
Metering Method
Center-Weighted Average, Evaluative, Partial, Spot
Exposure Modes
Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation
-3 to +3 EV (1/3, 1/2 EV Steps)
Metering Range
-3 to 20 EV
White Balance
2000 to 10,000K
Presets: Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
Continuous Shooting
Mechanical Shutter
Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)
Electronic Shutter
Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG)
Interval Recording
Yes
Self-Timer
2/10-Second Delay
Still Image Capture
Image Sizes
3:2 JPEG / Raw
44.7 MP (8192 x 5464)
22.4 MP (5808 x 3872)
11.6 MP (4176 x 2784)
5.9 MP (2976 x 1984)
3.8 MP (2400 x 1600)
Aspect Ratio
1:1, 3:2, 4:3, 16:9
Image File Format
JPEG, Raw
Bit Depth
14-Bit
Video Capture
Internal Recording Modes
H.265 4:2:2 10-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [680 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [680 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/59.94/100/120 fps [170 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [170 to 1880 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [28 to 230 Mb/s]
H.264 4:2:0 8-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [470 to 1300 Mb/s]
UHD 8K (7680 x 4320) at 23.98/25/29.97 fps [470 to 1300 Mb/s]
DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94/100/120 fps [120 to 1880 Mb/s]
UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94/100 fps [120 to 1880 Mb/s]
1920 x 1080p at 23.98/25/29.97/50/59.94 fps [12 to 180 Mb/s]
Raw 12-Bit
DCI 8K (8192 x 4320) at 23.98/24.00/25/29.97 fps [2600 Mb/s]
External Recording Modes
4:2:2 10-Bit via HDMI
DCI 4K (4096 x 2160) up to 59.94 fps
UHD 4K (3840 x 2160) up to 59.94 fps
Fast-/Slow-Motion Support
Yes
Gamma Curve
Canon Log, Canon Log 3
Recording Limit
Up to 30 Minutes
IP Streaming
Yes
Built-In Microphone
Stereo
Audio Recording
AAC Audio
LPCM Audio
Interface
Media/Memory Card Slot
Slot 1: CFexpress Type B
Slot 2: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]
Video I/O
1x Micro-HDMI (Unspecified Signal) Output
Audio I/O
1x 1/8″ / 3.5 mm TRS Stereo Microphone Input on Camera Body
1x 1/8″ / 3.5 mm TRS Stereo Headphone Output on Camera Body
Power I/O
1x USB-C (5VDC at 1.5 A) Input
Other I/O
1x USB-C (USB 3.2 / 3.1 Gen 2) Data Output (Shared with Power Input)
1x Canon N3 Control Input
Wireless
2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Control
Mobile App Compatible
Yes: Android & iOS
App Name: Canon Camera Connect
Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, View Live Feed
Global Positioning (GPS, GLONASS, etc.)
GPS
*Via Connected Smartphone
Monitor
Display Size
3.2″
Resolution
2,100,000 Dot
Display Type
Free-Angle Tilting Touchscreen LCD
Secondary Display
Top: Status Display
Viewfinder
Type
Built-In Electronic (OLED)
Size
0.5″
Resolution
5,760,000 Dot
Eye Point
23 mm
Coverage
100%
Magnification
Approx. 0.76x
Diopter Adjustment
-4 to +2
Focus
Focus Type
Auto and Manual Focus
Focus Mode
Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points
Phase Detection: 1053
Autofocus Sensitivity
-6 to +20 EV
Flash
Built-In Flash/Light
No
Maximum Sync Speed
1/250 Second
Flash Compensation
-3 to +3 EV (1/3, 1/2 EV Steps)
Dedicated Flash System
eTTL
External Flash Connection
PC Terminal
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
0 to 85%
General
Battery Type
1x LP-E6NH Rechargeable Lithium-Ion
Shoe Mount
1x Hot Shoe
Tripod Mounting Thread
1x 1/4″-20 Female (Bottom)
Material of Construction
Magnesium Alloy
Dimensions (W x H x D)
5.43 x 3.84 x 3.46″ / 138 x 97.5 x 88 mm
Weight
1.62 lb / 738 g (With Battery, Recording Media)
Packaging Info
Package Weight
3.045 lb
Box Dimensions (LxWxH)
11 x 9.4 x 6.1″
